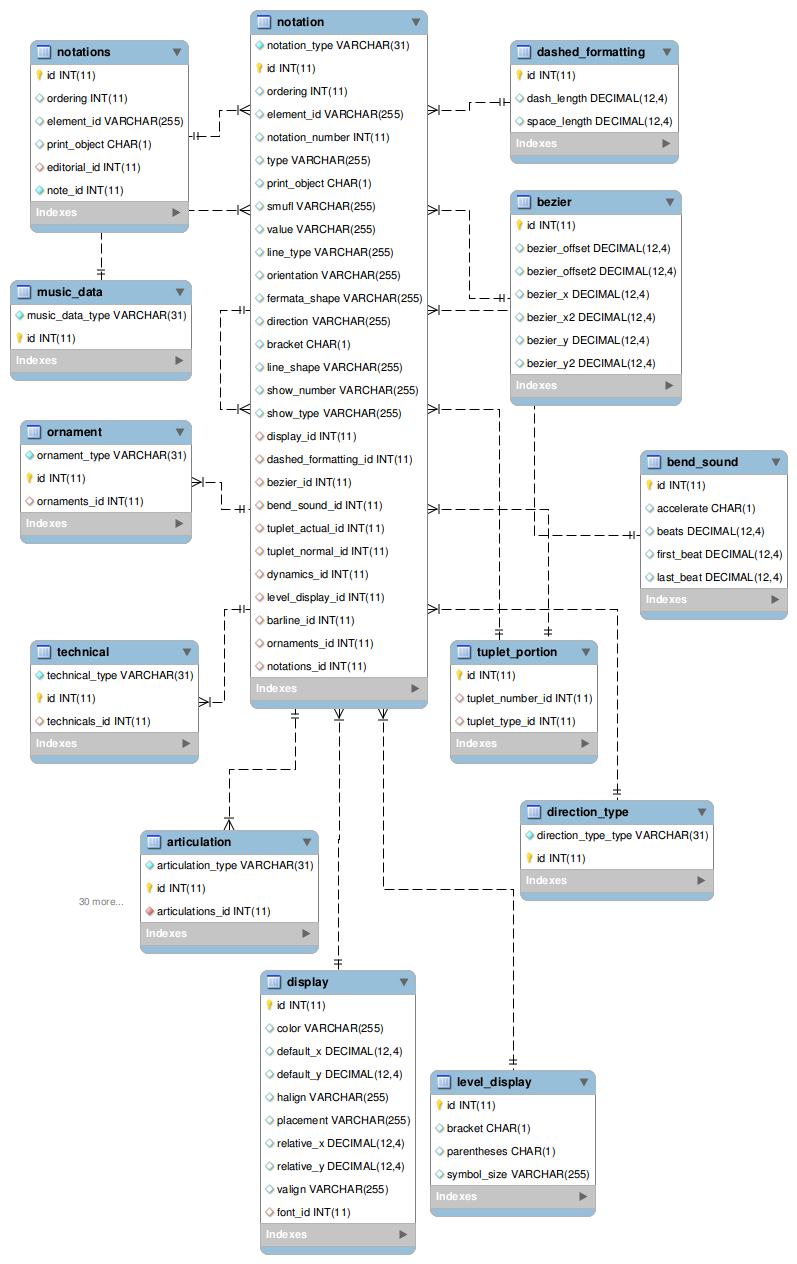

Each subelement of a notations element is stored as a record in the notation table. The parent notations element data is in table notations. This many-to-one relationship uses foreign key notations_id in the notation table.

notation is a single-inheritance table with discriminator field notation_type. The notation_type discriminator values are:

• tied
• slur
• tuplet
• glissando
• slide
• ornaments
• technicals
• articulations
• dynamics
• fermata
• arpeggiate
• non arpeggiate
• accidental mark
• other notation

Since many different object types are stored in the notation table, each notation type individually only uses some fields for their records. Notable data definitions are below:

• The number attribute value is in field notation_number
• dashedFormatting group attributes, if present, are stored in a joined dashed_formatting table
• bezier group attributes, if present, are stored in a joined bezier table
• A tuplet notation has two tuplet_portion records, one for the tuplet-actual element, and the other for the tuplet-normal element. These join on music_data foreign keys tuplet_actual_id and tuplet_normal_id, respectively
• A slide element with bend-sound attributes have those values stored in the bend_sound table, foreign key bend_sound_id
• When an accidental mark record has level-display group attributes defined, those values are stored in table level_display and joined on field level_display_id
• An ornaments discriminator value record is a list of ornaments whose individual ornament records are in the ornament table, foreign key ornaments_id. An ornaments list record can also have a list of accidental marks, whose individual records themselves are a notation type. These records are in the notation table with a discriminator value of accidental mark. The foreign key self-join to the parent ornaments list record in the notation table is ornaments_id.
• A technicals discriminator value represents a list of technicals whose individual technical records are in the technical table, foreign key technicals_id
• An articulations discriminator value represents a list of articulations whose individual articulation records are in the articulation table, foreign key articulations_id
• dynamics is implemented as a direction type, so when a dynamics element is a subelement of a notations element, the data is stored in the direction_type table and joined from notations using foreign key dynamics_id
• A list of fermata can belong to a barline, which is a music_data record. The foreign key in notation to the music_data record is barline_id.
