Direction

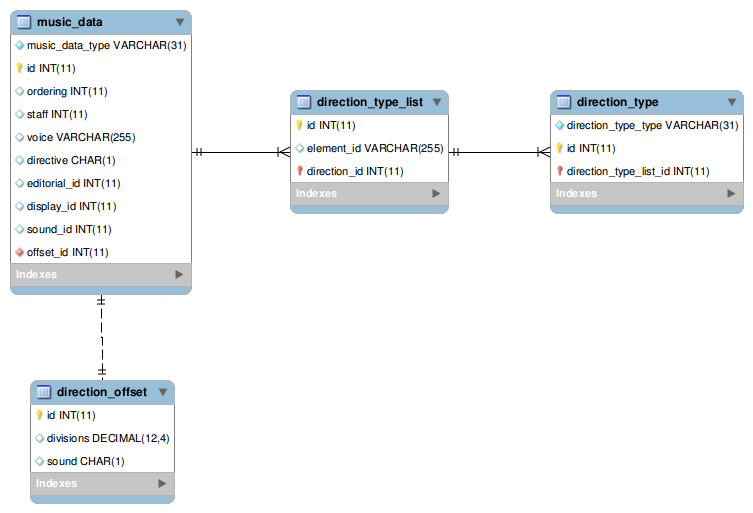

A direction is a
music_data record with a discrminator value of direction.
A direction consists of one or more direction type lists, each having its own
direction_type_list record joined to the music_data table.
Direction Type

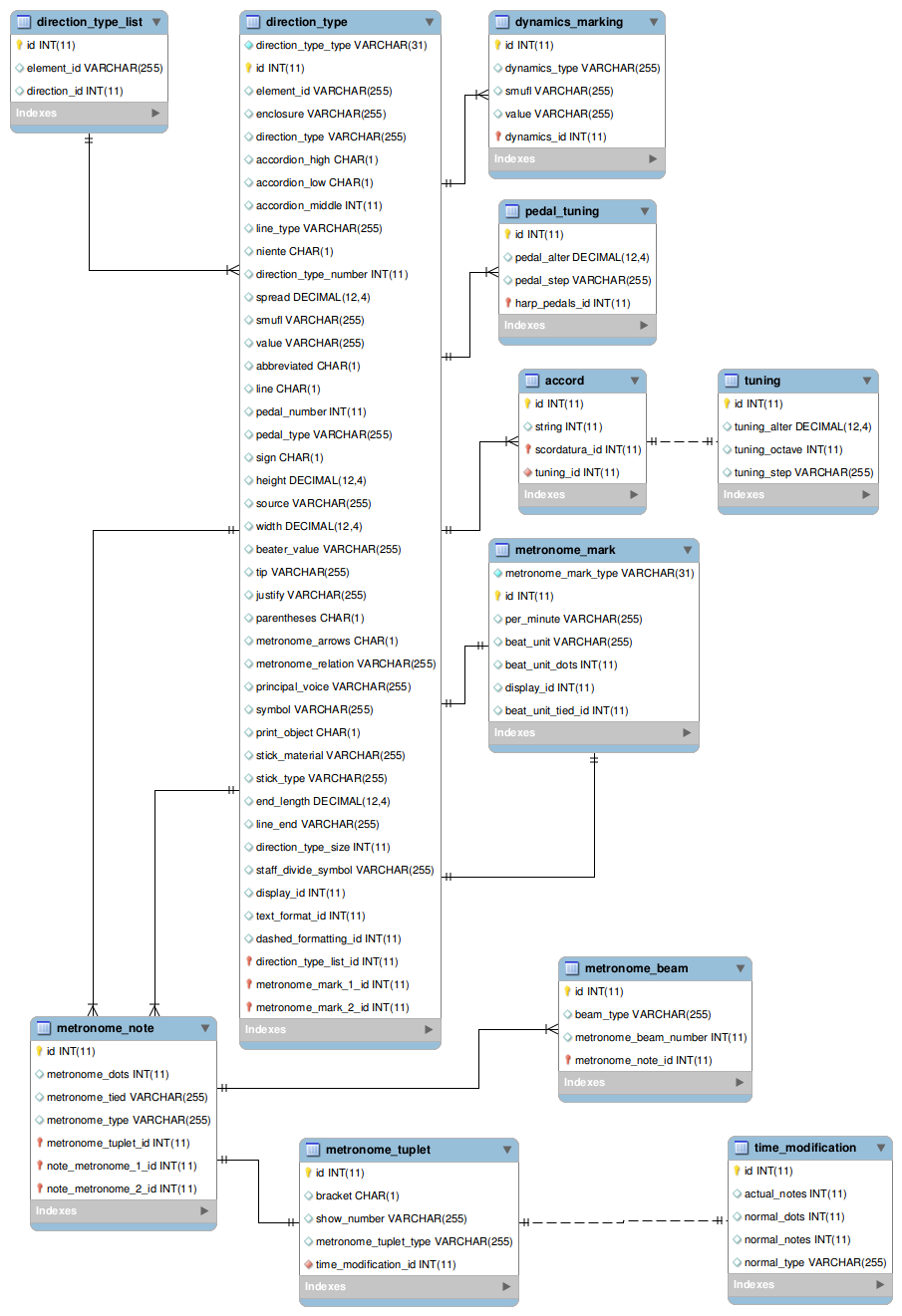

The direction types themselves are in table
direction_type with each record joined to its list in the direction_type_list table.
Table direction_type is a single-inheritance table with discriminator column direction_type_type.
Direction type discriminator values
Discriminator values are in most cases the lower-case name of the subelement of the direction-type element with spaces in the place of dashes.
Examples:
segno and octave shift.
- Metronome discriminator values are
note metronomeandbeat metronome - Percussion discriminator values are
the lower-case name of the subelement of the percussion element with spaces in the place of dashes. Examples:
timpaniandstick location.
Exceptions are:
Metronome markings
Beat metronomes consist of a
music_data record with discriminator value beat metronome joined to two
metronome_mark records joined on columns metronome_mark_1_id and
metronome_mark_2_id.
Note metronomes consist of a
music_data record with discrminator value note metronome joined to two lists of
metronome_note records,
the first list joined on metronome_note.note_metronome_1_id,
and the second list joined on metronome_note.note_metronome_2_id.
Beams, tuplet, and time modification relations are shown in the diagram below.
